IT Remote Support
- Storage up to 16GB -64 GB
- Wireless 802.11bgn
- Touch Proximity
- Built in Mic & Speaker
- Storage up to 64GB
- Digital Signature
- Finger Print Sensor

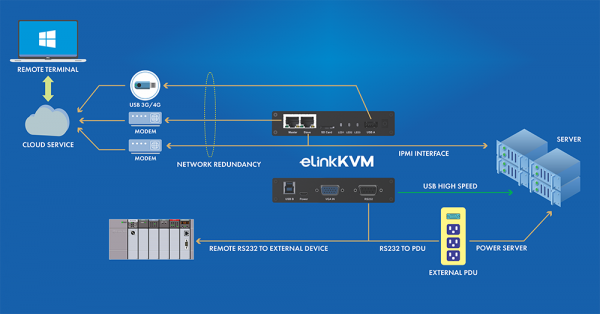

Server Remote Control

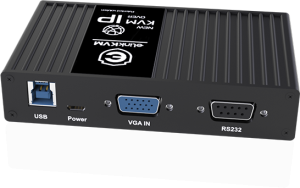

ELinkKVM (eLinkKVM-1620-4-1-1)
- Bios level remote access and control
- Full HD video resolution by hardware mode
- ANY RESOLUTION WITH BOOSTER MODE
- Virtual media and internal SD card
- Remote access serial port Remote power control (IPMI or external IPU)
- Redundancy for reliability (support 4G through USB)
- Scriptable language for automation process
- Extremely low cost Suitable for SME IT support
Hardware
- Provides over-IP capability to KVM switches that do not have built in over-IP functionality 1
- Supports USB and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Virtual Media Support
- High video resolution – up to 1920 x 1080 @ 60Hz- 32 bit color depth for the local console;
- Support up to 2K Resolution with Booster Mode
Management
- Up to 8 user accounts
- Up to 1 concurrent logins
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Remote Firmware upgradable
- Serial console management – serial terminal access.
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Power Over the NET integration for remote power control
- Export/import user account and configuration settings
Ease-to-Use Interface
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel
Advanced Security
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates
- Support for IP/MAC Filter
- Supports password protection
Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Absolute and HID Mouse
- Scripting by Python (integrating Image Matching Algorithm)
- BIOS-level access
| Connectors | |
| Console Ports | 1 x SPHD-18 Male (Blue) |
| KVM (Computer) Ports | 1 x SPHD-15 Female (Blue) |
| Virtual Media | 1 x USB 3.0 Type B Female |
| RS232 | 1 x DB-9 Male (Black) |
| LAN Ports | 2 x RJ-45 Female |
| Power | 1 x USB Micro |
| Switches | |
| Reset | 1 x Semi-recessed Push button |
| LEDs | |
| Power | 1 (Orange/Green) |
| Link | 1 (Orange/Green) |
| 10/100 Mbps | 1 (Orange/Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | Up to 1920 x 1080 @ 60 Hz; EDID 1.4 |
| Power Consumption | DC5.0V |
| Environmental | |
| Operating Temperature | 0 – 75°C 0 – 40°C (Power Adapter) |
| Storage Temperature | -20 – 85°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.49 kg ( 1.08 lb ) |
| Dimensions (L x W x H) | 118 x 69 x 26 mm |
| Note | For some of rack mount products, please note that the standard physical dimensions of
WxDxH are expressed using a LxWxH format. |
